SHUTOFF VALVE - BIG GUN

LOCK NUT, BIG GUN SHUTOFF VALVE

66EVST-BG

PLUG, URETHANE, BIG GUN SHUTOFF VALVE

66RW-BG

RUBBER WASHER, LARGE, BIG GUN SHUTOFF VALVE

130112

HARDENED INLET ASSEMBLY, 1-1/4" NPSM, BLACK OXIDE FINISH, BIG GUN SHUTOFF VALVE (INCLUDES #4 & 5)

66HI

HARDENED SPACER, BLACK OXIDE FINISH, BIG GUN SHUTOFF VALVE

66HS

RUBBER WASHER, MEDIUM, BIG GUN SHUTOFF VALVE

130111

NOZZLE COUPLING, BLACK OXIDE FINISH, BIG GUN SHUTOFF VALVE

66NCNV

BIG GUN KIT, ALLOWS 66EVD-BG TO BE USED WITH 1-1/4" NOZZLES AND NOZZLE HOLDERS(INCLUDES #1, 2, 3, 4, 5, 6 & 7)

66EVD-BG-KIT

SHUTOFF VALVE, BIG GUN, VALVE ONLY (DOES NOT INCLUDE #1, 2, 3, 6, 7, 29, NOZZLE OR NOZZLE HOLDER)

66EVD-BG

SOCKET HEAD CAP SCREW

805-531

SPRING BOLT NUT

804-322

SPINDLE SET SCREW

800-217

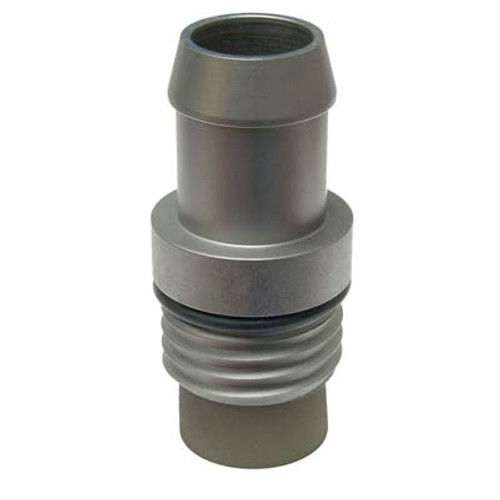

HOSE END CPLG, 1" ID HOSE, INCLUDES O-RING & RUBBER LINER

4-66HE

TORSION SPRING

66VSS

HOSE END CPLG, 3/4" ID HOSE, INCLUDES 0-RING & RUBBER LINER

3-66HE

SCREW

800-218

WASHER, STEEL SHUTOFF

66VW

RUBBER O-RING

66RR

SHUTOFF VALVE SPINDLE

100-070

RUBBER LINER, 3/4' & 1'HOSE

800-236

VALVE HANDLE W/GRIP

66VHD

VALVE BODY

100-018

SPINDLE BUSHING, BRASS

66TB

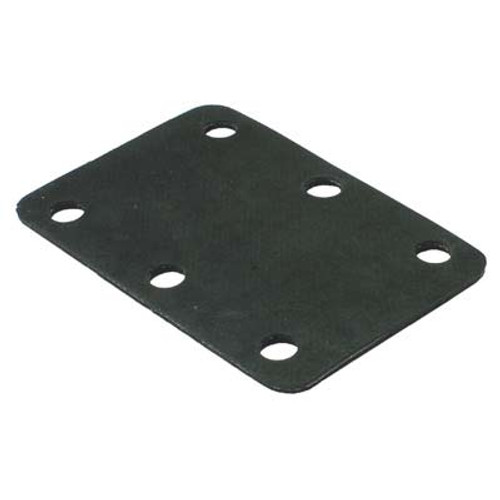

COVER, GASKET

66EVG

SPINDLE E-CLIP

800-149

NOZZLE WASHER, TYPE 1

66CHW

HANDLE GRIP

800-338

VALVE COVER

100-170

INSERT, THREADED VALVE

100-134

SPINDLE O-RING

15-30-O

SHUTOFF ARM

100-041

SOCKET HEAD SCREW

805-533
