TYPHOON PIPE BLASTER, OPTIONALLARGE RANGE CARRIAGE SET, 40" TO 60"
Contact Us for Additional Information
Write a Review
Write a Review
TYPHOON PIPE BLASTER, OPTIONALLARGE RANGE CARRIAGE SET, 40" TO 60"
- Part Number:
- 016500
- Weight:
- 20.80 LBS

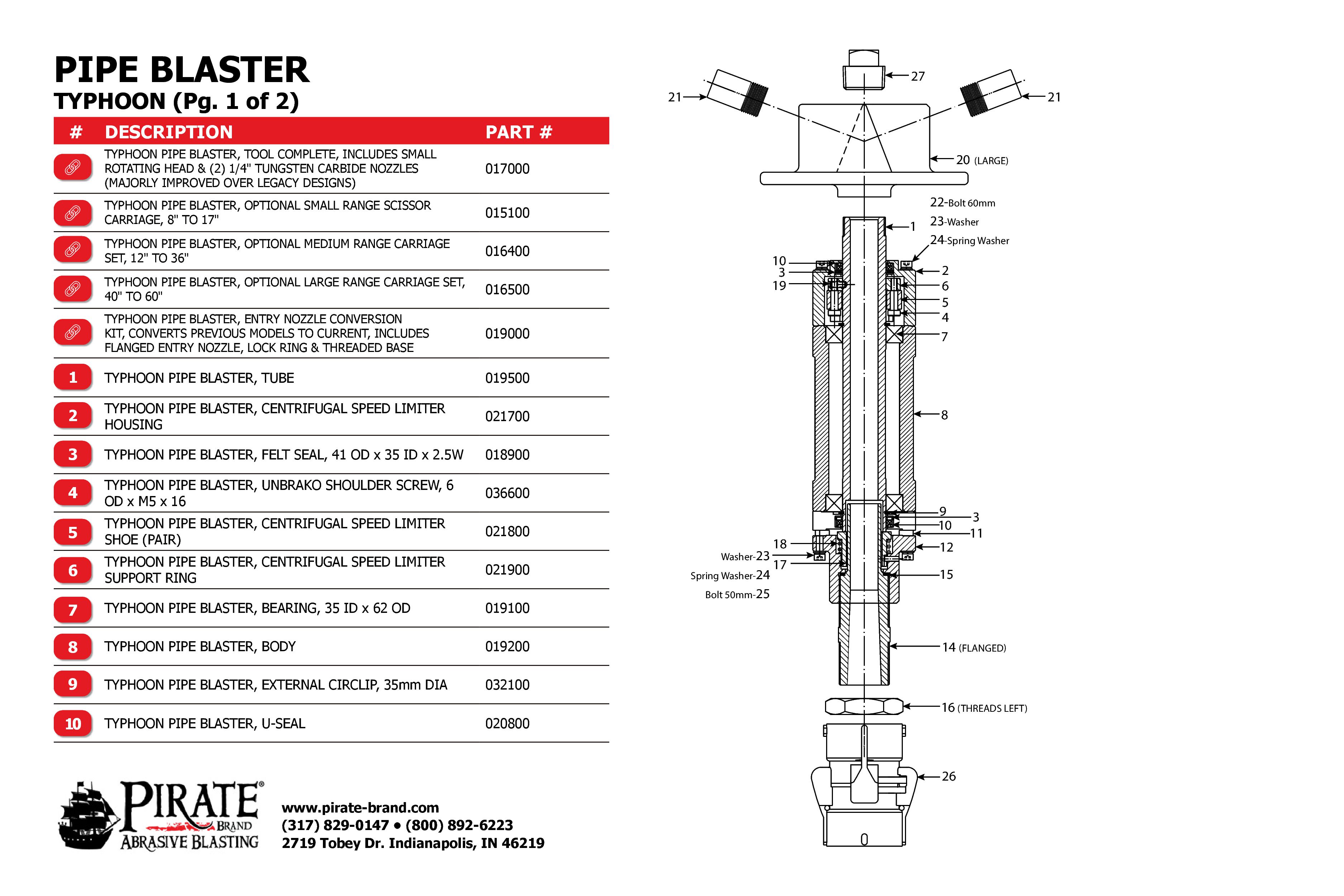

TYPHOON PIPE BLASTER, OPTIONAL LARGE RANGE CARRIAGE SET, 40" TO 60"
This product is compatible with the following OEM manufacturers
| OEM Manufacturer | Part # |
|---|---|
| CLEMCO INDUSTRIES / AEROLYTE SYSTEMS / ZERO PRODUCTS | 10560 |
Forecast Sales is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand, RPB Safety, and Bullard.
Fitting the Large and Mid Range Carriages
The mid range carriage set (016400) is supplied with a front carriage body, a rear lance carriage body and 9 leg assemblies. The large range carriage set (016500) is supplied with a front carriage body, a rear lance carriage body and 3 leg assemblies.
Slide the back end of the tool into the larger front carriage body, position the front of the body flush with the front face of the centrifugal speed limiter housing, ensure that the body is located in front of the breather vent holes on the seal retainer body, do not block the vent holes. Now tighten the two (2) screws on the body to fix the body to the tool.
Fit the smaller lance carriage body to the lance pipe which should be positioned to prevent excess bowing of the lance pipe and angular misalignment of the coupled connections.
Now fit the appropriate leg assemblies to the front carriage body and rear lance carriage body, adjust so that the tool and the lance are centered in the pipe, and also check that the wheels are in line with the direction of travel.
Note: The large and mid range carriages track best when set up in a “Y” configuration, one leg pointing down.
